MASERU, LESOTHO SOUTHERN AFRICA+266 594 66830
UL4 Construction — General Engineering & Structures

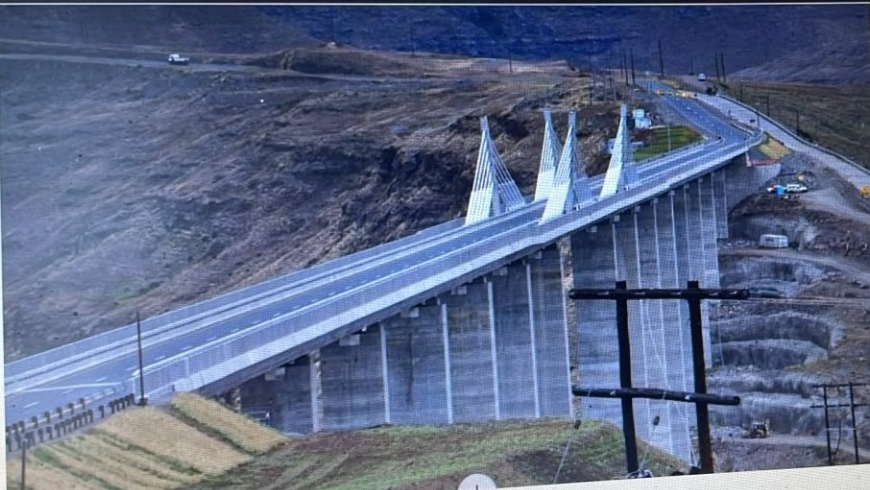

Cable-stayed bridge crossing a mountainous landscape in Lesotho

HEAVY LIFTING.
PRECISELY
CONTROLLED.

Enerpac hydraulic lifting equipment for sale, rental and complete lifting operations.

Explore our equipment Discuss your project
SALES   /   RENTAL   /   COMPLETE LIFTING OPERATIONS

We own the equipment.
We supply the capability.
We get the job done.

Specialist Enerpac hydraulic lifting equipment & services.

UL4 Construction offers specialist hydraulic lifting solutions for major infrastructure, civil engineering, industrial and construction projects across Lesotho and Southern Africa.

With our own high-capacity Enerpac hydraulic lifting equipment, we offer clients the flexibility to rent specialist equipment, purchase available equipment, or appoint UL4 Construction to carry out the complete lifting operation.

More about UL4 Construction

Our equipment portfolio

Download equipment catalogue

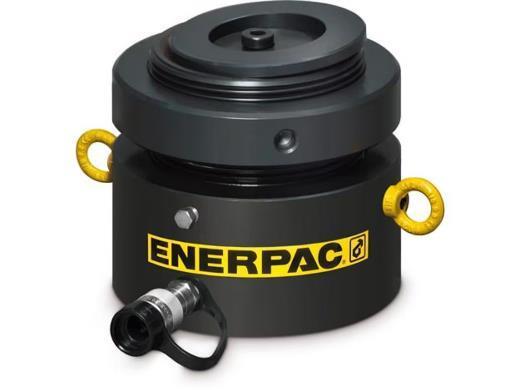

LPL5002 — Low-height lock nut cylinder

Quantity available: 24

LPL5002, 575 ton Capacity, 1.77 in Stroke, Low Height, Lock Nut Hydraulic Cylinder

Maximum operating pressure
10,150 psi (700 bar)
Capacity class
500 ton
Maximum cylinder capacity, advance
575 short tons (5,114 kN)
Stroke
1.77 in (45 mm)
Return type
Single-acting, load return
Weight
404 lbs (189 kg)
Tilt saddle
Up to 5° misalignment

Product description

LPL-Series hydraulic cylinders are ideal for heavy-duty applications where clearance space is restricted. The lock nut provides mechanical load holding. The tilt saddle allows for up to 5 degrees of misalignment.

Enquire about LPL5002

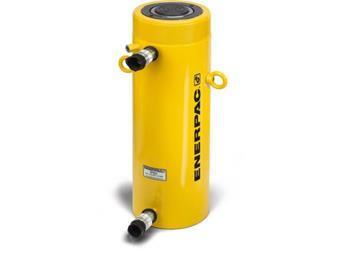

RR10018 — Double-acting hydraulic cylinder

Quantity available: 24

RR10018, 103.2 ton Capacity, 18.13 in Stroke, Double-Acting, General Purpose Hydraulic Cylinder

Maximum operating pressure
10,000 psi (700 bar)
Capacity class
100 ton
Maximum cylinder capacity, advance
103.2 short tons (933 kN)
Maximum cylinder capacity, retract
48 short tons
Stroke
18.13 in (460 mm)
Collapsed height A
27.06 in (687 mm)
Extended height B
45.19 in (1,147 mm)
Return type
Double-acting, hydraulic return
Plunger type
Solid

Product description

RR-Series cylinders are the ideal choice whenever you need to retract the plunger quickly with precise control. These rugged rams withstand high-cycle and demanding job-site uses in construction and manufacturing.

Enquire about RR10018

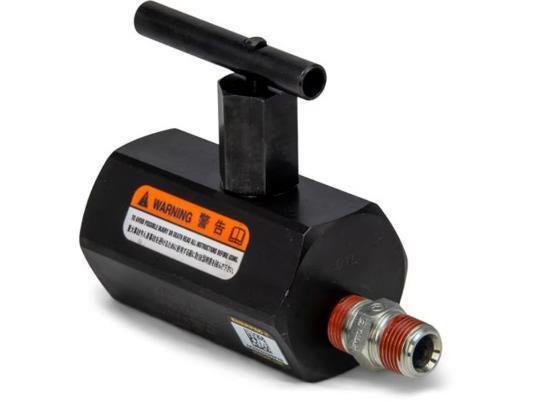

V66 — Manually operated check valve

Quantity available: 25

V66, Manually Operated Check Valve with Built-in Relief Valve

Operation
Manually operated check valve
Relief valve setting
11,500 psi (790 bar)
Cylinder compatibility
Single- and double-acting
Application
Load holding

Product description

For load-holding applications with single- and double-acting cylinders. The valve allows oil to flow back to the tank when the cylinder retracts.

Enquire about V66

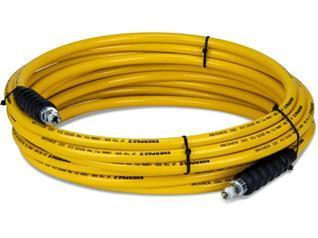

H7350 — High-pressure hydraulic hose

Quantity available: 48

H7350, 50 ft., Thermo-plastic High Pressure Hydraulic Hose, .38 in. Internal Diameter

Maximum operating pressure
10,000 psi (700 bar)
Internal diameter
0.38 in (9.7 mm)
End one coupler
3/8″ NPTF
End two coupler
3/8″ NPTF
Oil capacity
68.04 in³
Length
50 ft (15.0 m)
Weight
15.2 lbs (11.5 kg)
Safety factor
4:1

Product description

H700-Series thermoplastic hoses have a safety factor of 4:1 to provide reassurance and reliability for demanding high-pressure applications.

Enquire about H7350

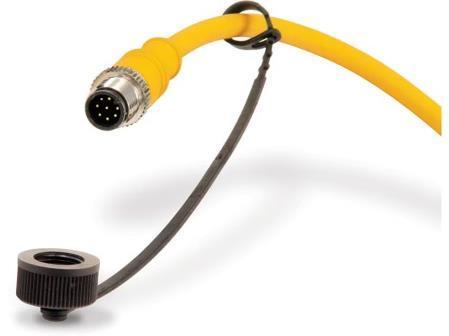

EVO-SC-25 — Stroke sensor cable

Quantity available: 23

EVO-SC-25, Stroke Sensor Cable, 82 ft

Length
82 ft (25 m)
Can be used with
SFP split-flow pumps; EVO synchronous lifting system
Pump series compatibility
EVO, SFP

Product description

Stroke sensor cable for use with SFP split-flow pumps and EVO synchronous lifting systems. Cables can be connected together for additional length. One is required for each stroke sensor.

Enquire about EVO-SC-25

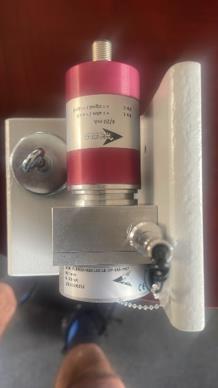

SENSING SC50.01 — Cable-extension linear sensor

Quantity available: 24

SENSING SC50.01 cable-extension linear sensor

Listed measuring range
500 mm
Output
4–20 mA
Protection
IP67
Type
Cable-extension linear sensor

Product description

The listed equipment is the 500 mm range, 4–20 mA output, IP67 version. The catalogue notes that the manufacturer offers SC50.01 sensors with ranges up to 1,250 mm.

Enquire about SENSING SC50.01

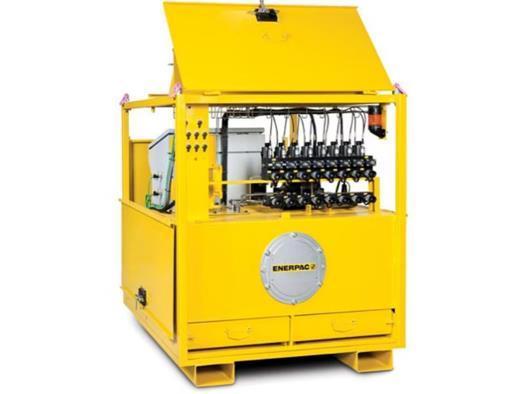

EVO1221380 — 12-point synchronous lifting system

Quantity available: 2

EVO1221380, 12 point Synchronous Lifting System, 128 in³/min Oil Flow at Rated Pressure, 4 hp, 380V

Maximum operating pressure
10,000 psi (700 bar)
Cylinder compatibility
Single-acting, double-acting
Reservoir capacity
66 gal (250,000 cm³ / 250 L)
Reservoir volume
15,246 in³
Maximum flow at rated pressure
128 in³/min (2.1 L/min)
Variable output flow below 1,800 psi
201–677 in³/min
Variable output flow above 1,800 psi
38–128 in³/min
Output flow at 100 psi
677 in³/min
Output flow at 10,000 psi
128 in³/min
Number of outlets
12
Motor size
4 hp
Motor frequency
50/60 Hz
Motor phases
3-phase
Motor voltage
380–415 V
Duty cycle
Extended
Valve operation
Solenoid
Valve type
4-way, 3-position
Power source
Electric
Number of lift points
12
Accuracy over full stroke
Up to 0.040 in (1.0 mm)
Weight
2,025 lbs (920 kg)

Product description

The multi-functional EVO synchronous lifting system combines a hydraulic power unit, PLC control and variable-frequency drive for precise synchronization and oil-flow control. The system supports monitoring, data recording and networked operation.

Enquire about EVO1221380 Explore manufacturer reference material

Availability figures are from the catalogue dated 9 October 2026. Contact UL4 Construction to confirm current availability and project suitability.

EVO manufacturer
reference material

Enerpac EVO-Series synchronous lifting systems · Catalogue pages 6–7

View the source pages
For illustration purposes only.

UL4 Construction’s listed available system is EVO1221380. The models, accessories and applications below describe the manufacturer’s range. They do not confirm additional UL4 stock, and the project examples are manufacturer reference projects.

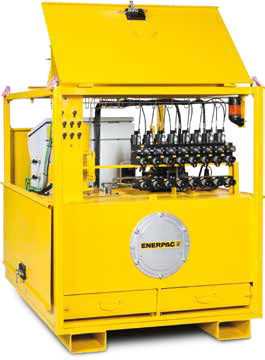

Enerpac EVO840460 synchronous lifting system shown in the manufacturer catalogue
EVO840460 shown for illustration — manufacturer reference model.

The multi-functional synchronous lifting system

  • Modular lifting pumps control 4, 8 or 12 lifting points.
  • Connect single- or double-acting cylinders with the same or different lifting capacities.
  • PLC-controlled system with an integrated 10,000 psi hydraulic power unit and 66-gallon reservoir.
  • Link up to four EVO hydraulic power units to a separate network controller, supporting up to 48 lifting points.
  • Variable frequency drive motor (VFDM) and PLC provide precise synchronization and oil-flow control.
  • Intuitive setup, control and navigation, with data storage and recording.
Flow at rated pressure
46–292 in³/min
Motor size
4–10 hp

Benefits of the EVO-Series system

Precise control & safety

A central control system manages multiple lift points for improved safety and productivity. Programmable synchronized lifting, automatic stops at preset cylinder stroke or load limits, and warning and stop features support safe movement of loads.

High accuracy

VFDM and PLC control oil flow, stroke and speed. Depending on the cylinder capacities used, accuracy of 0.040 in (1.0 mm) between lifting points can be achieved.

Ease of operation

Visual screens, icons, symbols and colour coding support a single operator controlling the entire operation.

Monitoring & data recording

Display operating data, record at user-defined intervals, and store and read out data for reporting.

Network capability

Ethernet IP communication between hydraulic power units enables a plug-and-play connection.

Global standardized system

Enerpac’s global coverage provides local manufacturer support.

Controllers, sensors & accessories

Manufacturer options shown for reference. Accessories are ordered separately; confirm compatibility and availability with UL4 Construction.

CLNC12 industrial touchscreen network controller

CLNC12 network controller

Monitor and control a multipoint synchronized lift using an industrial-grade touchscreen and user-friendly interface. The same controller operates SFP-Series split-flow pumps or multi-functional EVO-Series lifting systems.

EVO-SC stroke sensor cable

EVO-SC stroke sensor cables

One cable is required for each stroke sensor. Cables can be connected together for extra length.

EVO-SC-6
19.7 ft
EVO-SC-25
82 ft
EVO-WSS wire stroke sensor with mounting magnets

EVO-WSS wire stroke sensors

Provide stroke feedback to the controls, with magnets for mounting. One sensor is required per lifting point; other measuring lengths are available on request.

EVO-WSS-500
19.7 in
EVO-WSS-1000
39.4 in
Coiled EVO-COMM communication cable

EVO-COMM communication cables

Transfer synchronized-lift information from the network control panel to each connected hydraulic pump.

EVO-COMM-25
82 ft
EVO-COMM-50
164 ft
EVO-COMM-75
246 ft
EVO-COMM-100
328 ft
EVOLCK-12 load cell connection kit

EVOLCK-12 load cell connection kit

Connect up to 12 electronic load cells to a standard EVO system using plug-and-play connections for applications requiring accurate load measurement. Weighing accuracy can be as good as 1% of the total load.

Enerpac high-tonnage cylinders with mechanical lock nuts

High-tonnage cylinders

Suitable for multipoint lifting applications. Manufacturer options include single- or double-acting cylinders, with or without mechanical lock nuts for load holding.

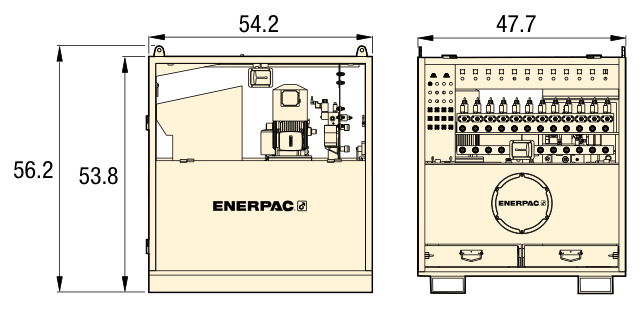

System dimensions

Manufacturer dimensional drawing from page 7. Dimensions shown in inches: 54.2, 47.7, 56.2 and 53.8. Refer to the original catalogue for the illustrated configuration.

Manufacturer dimensional drawing: side width 54.2 inches, front width 47.7 inches, overall height 56.2 inches and body height 53.8 inches
EVO-Series dimensional reference — illustration only.

EVO-Series standard model comparison

Manufacturer range, not UL4’s stock list. Flow values are at 60 Hz; all models below have a 66-gallon usable oil capacity and a VFDM.

Manufacturer models — 460–480 V, 3-phase, 50–60 Hz
ModelLift pointsFlow below 1,800 psi
(in³/min)		Flow above 1,800 psi
(in³/min)		Motor
(hp)		Weight
(lbs)
EVO4214604243–81246–15342,000
EVO4404604285–95188–292102,210
EVO8214608243–81246–15342,000
EVO8404608285–95188–292102,000
EVO122146012243–81246–15342,025
EVO124046012285–95188–292102,250

For 380–415 V, 3-phase, 50–60 Hz, change the model’s 460 suffix to 380 (for example, EVO421380). VFDM = variable frequency drive, 15–60 Hz. UL4’s available model remains EVO1221380; its specifications are listed in the equipment portfolio.

Manufacturer application examples

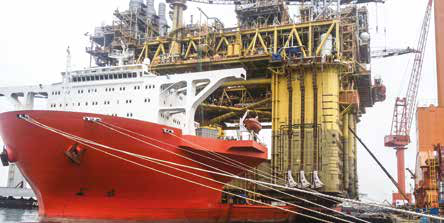

Manufacturer project photograph of the Gumusut-Kakap floating oil production system in Malaysia
Gumusut-Kakap, Malaysia

The manufacturer describes lifting, balancing, weighing and launching a 43,000-ton floating oil production system using EVO-Series synchronous hydraulics.

Enerpac manufacturer reference project · Page 6
Manufacturer project photograph of EVO systems used to lower a bascule pier box
Precision levelling of a caisson pier box

Three EVO systems connected to 32 hydraulic jacks lowered a 1,100-ton bascule pier box.

Enerpac manufacturer reference project · Page 7
